The ALUMESS.optic clamping system



is an universal and extremely flexible fixture and clamping system for optical coordinate measuring coordinate machines and measuring projectors.

The clamping system can be used both in direct light and transmitted light and on multi-sensor machines for tactile measurements. The clamping device is palletizable.

The guide grooves of the basic and connector rails allow a steplessly scalable moovement of the clamping frame.

A detailed description of the clamping system as well as clamping elements, support elements, positioning elements can be found in our ALUMESS catalogue.

ALUMESS.optic explanation video starter kit

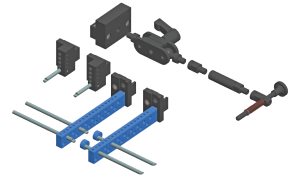

ALUMESS.optic assembly example: Pallet with spring clamp

ALUMESS.optic example: pallet with spring-clamp

Explanation of the ALUMESS.optic system:

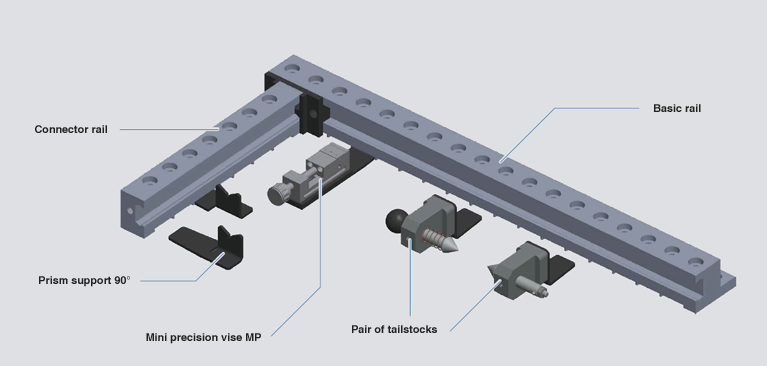

Mounting example ALUMESS.optic: Assembly in plug-in slot

ALUMESS-optic-assembly-in-plug-in-slot

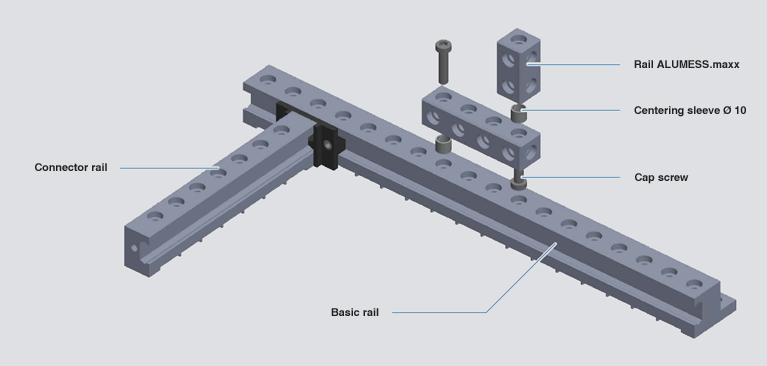

Mounting example ALUMESS.optic: Assembly on hole grid 20-M6

ALUMESS-optic-on-hole-grid

Mounting examples ALUMESS.optic

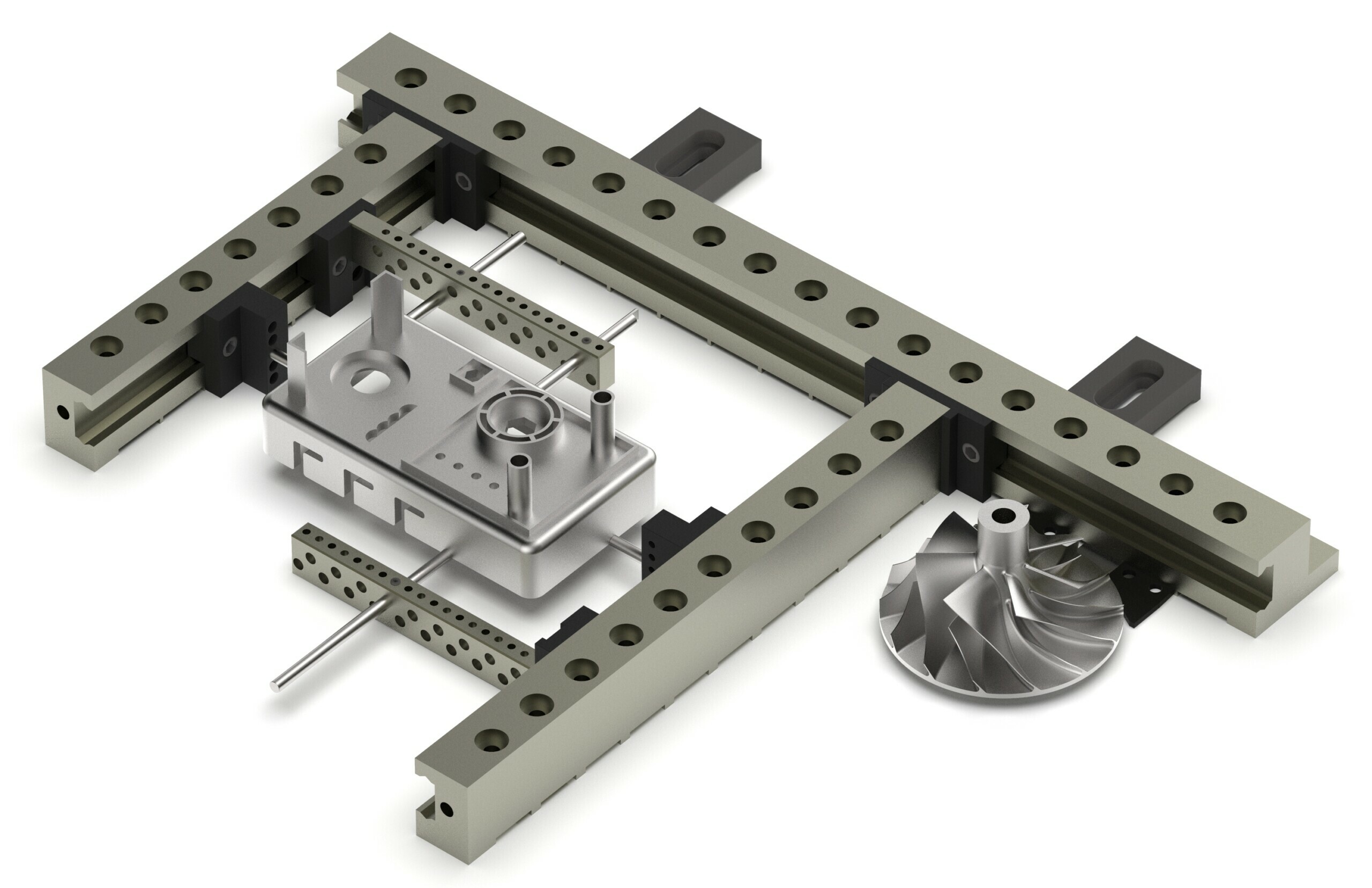

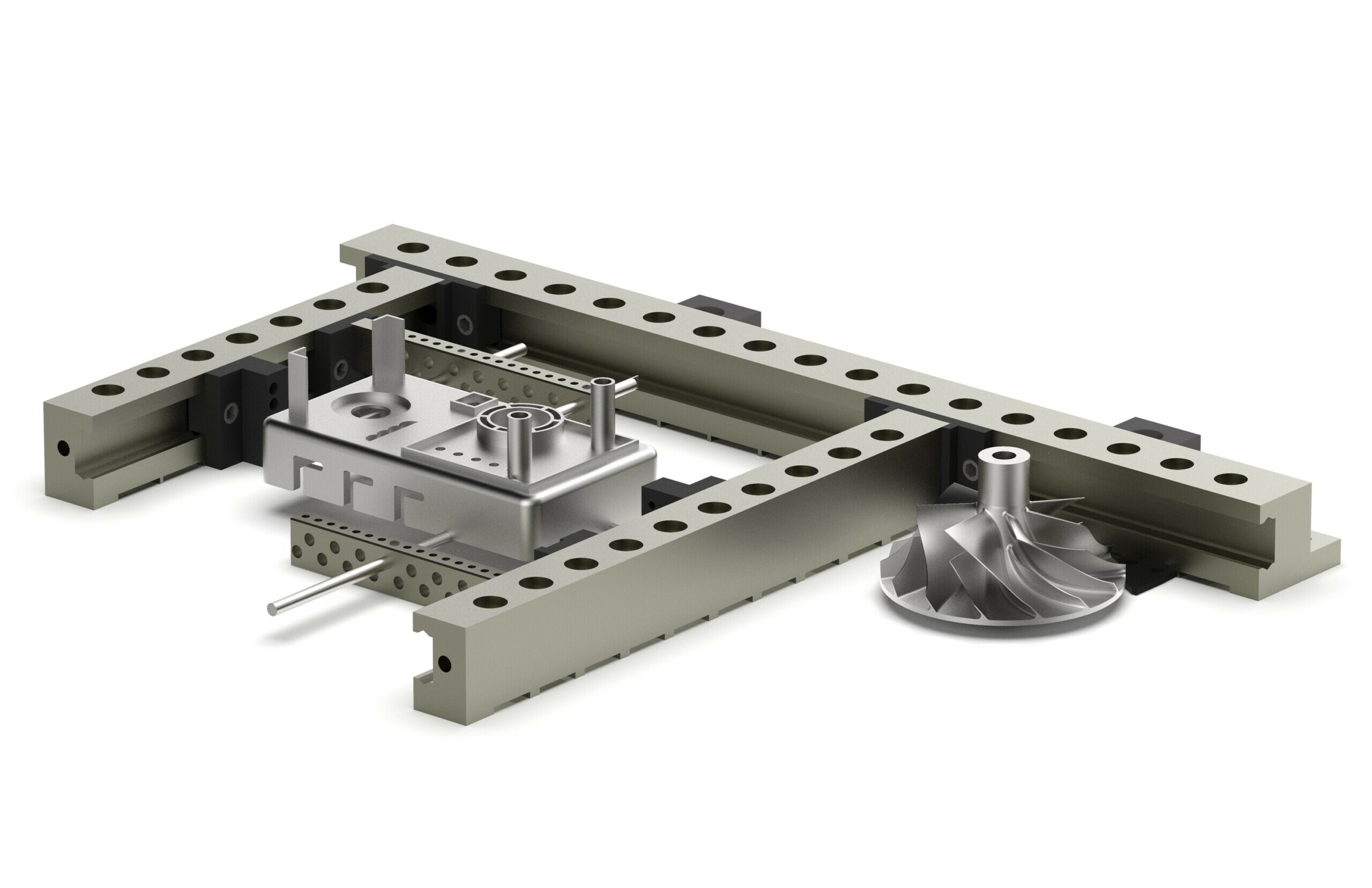

ALUMESS.optic 20° mounting example

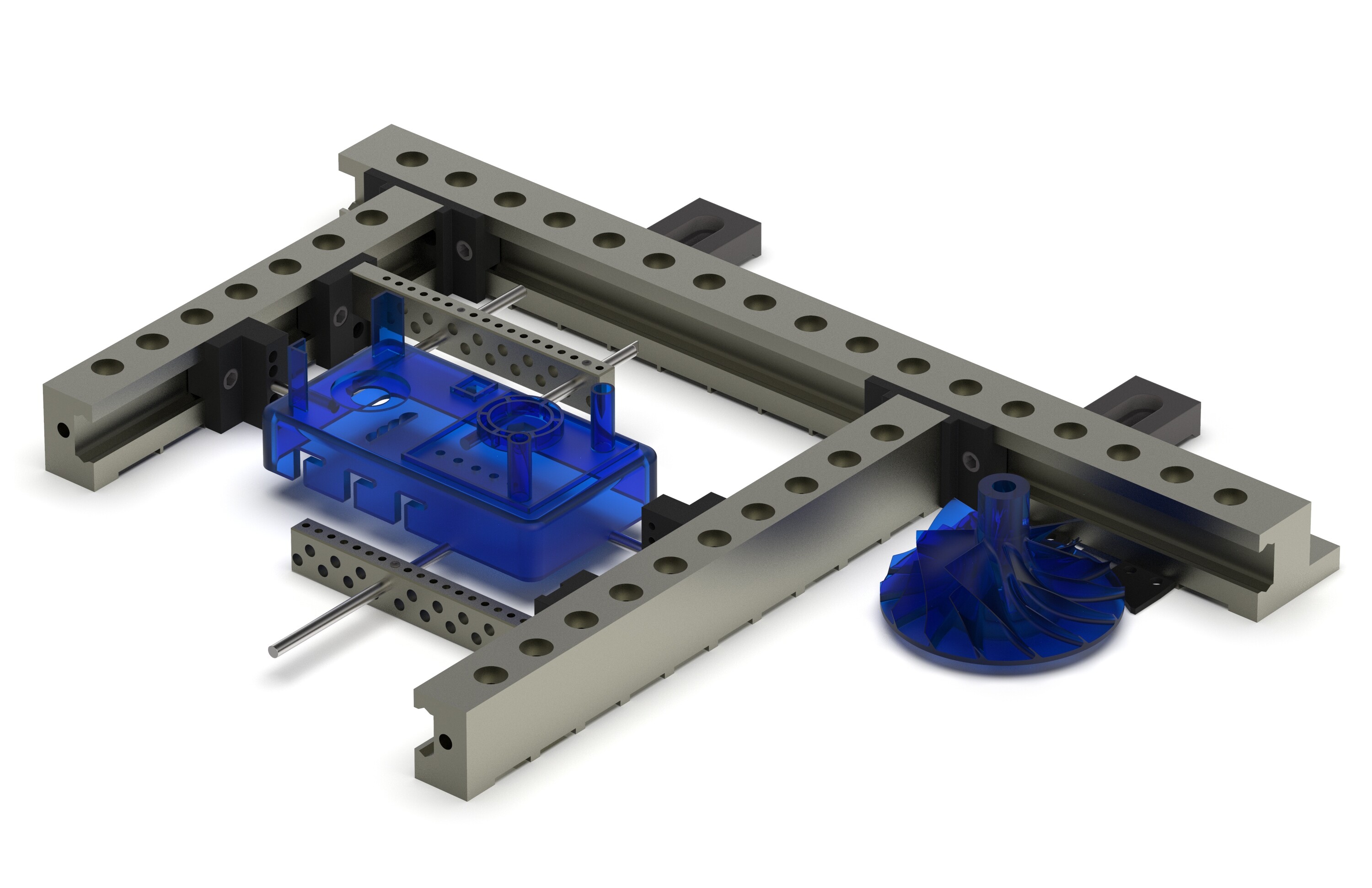

ALUMESS.optic 30° mounting example
ALUMESS.optic 40° mounting example

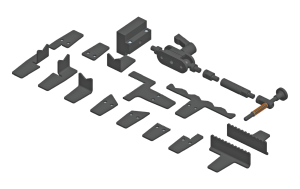

Getting started with ALUMESS.optic we offer the following Starter Kits:
